Australian Standard AS1319:1994 provides strict guidelines for layout, colour and size of safety signage. All Bronson Safety stock signs comply to AS1319:1994. In addition, our designers can create custom worded signs that will comply with the standard as well.
Sign Categories and Australian Standard Requirements
PROHIBITION SIGNS
Red annulus and slash in red over the action symbol which is black. Sign wording in black. Used to specify actions that are not permitted.
DANGER SIGNS
Used as a warning when a potential hazard is life threatening. The word “Danger” should be featured inside red oval, located inside a black rectangle. Sign wording in black.
CAUTION SIGNS
Hazard symbol should be black on yellow background and triangle should enclose symbol. Sign wording in black lettering. Used as a warning when a potential hazard is non-life threatening.
MANDATORY SIGNS
White symbol/image on circular blue or black ground. Sign wording in black lettering. Used to specify that a requirement or instruction is to be followed.
EMERGENCY SIGNS
Notify the location of emergency related facilities such as exits and first aid kits. White symbol on a green background.
EXIT SIGNS
These signs notify exits in a variety of options including luminous materials and backlit options.
FIRE SIGNS
Notify the location of firefighting equipment and fire alarms. Feature white symbol and/or text on a red background.
FACILITY SIGNS
These signs can provide direction, inform visitors and employees about policies and regulations
GHS & HAZCHEM SIGNS
Designate and identify hazardous materials in your facility.
Sign Materials
ALUMINIUM
1.6mm thick Capral Aluminium provides added strength and rigidity required for traffic and parking signs. Provides outstanding corrosion resistance.
FLUTE
Made from 3mm thick corrugated plastic to provide a lightweight and economical sign. Flexible enough to mount on curved surfaces such as fencing and gates. Ideal for temporary solutions such as construction sites.
METAL (COLOURBOND STEEL)
Recommended for outdoor use and harsh conditions. Expected life between 5 to 8 years. All signs come with rounded corners and pre-drilled holes.
PHOTO LUMINESCENT (LUMI)
Our photo-luminescent solution provides up to 10 hours of glow after only 5 minutes of exposure to sunlight or fluorescent light. Used with our range of self-adhesive, poly and metal Exit signs to meet or exceed international standards for safety and glow time.
POLYPROPYLENE (POLY)
UV stable and 1.4mm thick to resist cracking and fading, these signs can be used indoors or outdoors for between 3-5 years. Non-toxic and approved for use in food preparation areas. Each sign comes with rounded corners and four pre-drilled holes. Can withstand temperature ranges between -40˚ and 150˚ Celcius.
VINYL (SELF ADHESIVE)
Peel off the self-adhesive backing and apply to walls, doors or even machinery. Great for curved surfaces. Best suited to indoor use with an expected life between 5-8 years. Can withstand temperature ranges between -40˚ and 80˚ C.
ADDITIONAL REFLECTIVE SHEETING (OPTIONAL):
CLASS 2 OR ENGINEER GRADE (C2)
Reflective material is over 20 times more visible than ordinary signs. Often used in shopping centres or work sites.
CLASS 1 OR DIAMOND GRADE (C1)
Reflective sheeting features a distinctive honeycomb design and is used on many traffic and road signs in order to comply to state and territory regulations.

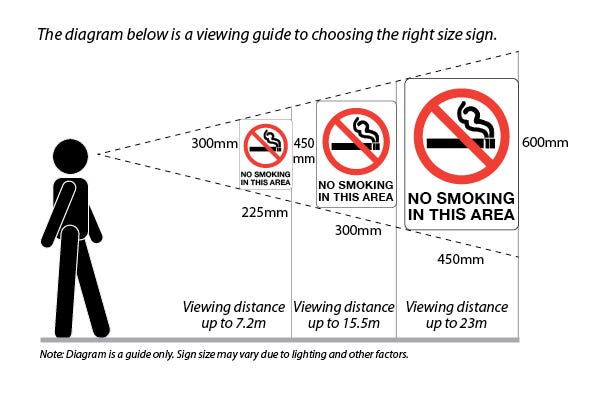

Safety Sign Size and Viewing Distance Guide
Signs should be large enough to view with ease when communicating safety messages to employees and/or visitors. The size of the sign is dependent on the size the writing must be to be legible from a distance.
The size of a sign will depend on the location distance and other factors such as lighting and environment.
The following sizing recommendations combine to ensure that a safety sign is adequately legible by all viewers:
-
Any Pictograms or images present on the sign must be at least 15mm per metre of viewing distance.
-
Any Upper Case (Capital) text must be a minimum of 5mm high per metre of viewing distance required. (Example Text: NO SMOKING IN THIS AREA)
-
All Lower Case text must be a minimum of 4mm high per metre of view distance required. Please note, it is not recommended to incorporate lower case text on a safety sign as it can be difficult to read.
DISCLAIMER: These recommendations are based on signage found in well-lit areas, with pedestrian workers as viewers. The information provided is a guide only. Bronson Safety recognises that all situations are different and thus certain recommendations may not be applicable to all.
